Introduction of front lower control arm, front suspension stabilizer bar, rear shock absorber dust cover and front lower control arm ball joint in the suspension system of MG ZS by Asiautos Auto Parts(MG Aftermarket Parts Expert)

Edited by Asiautos Auto Part

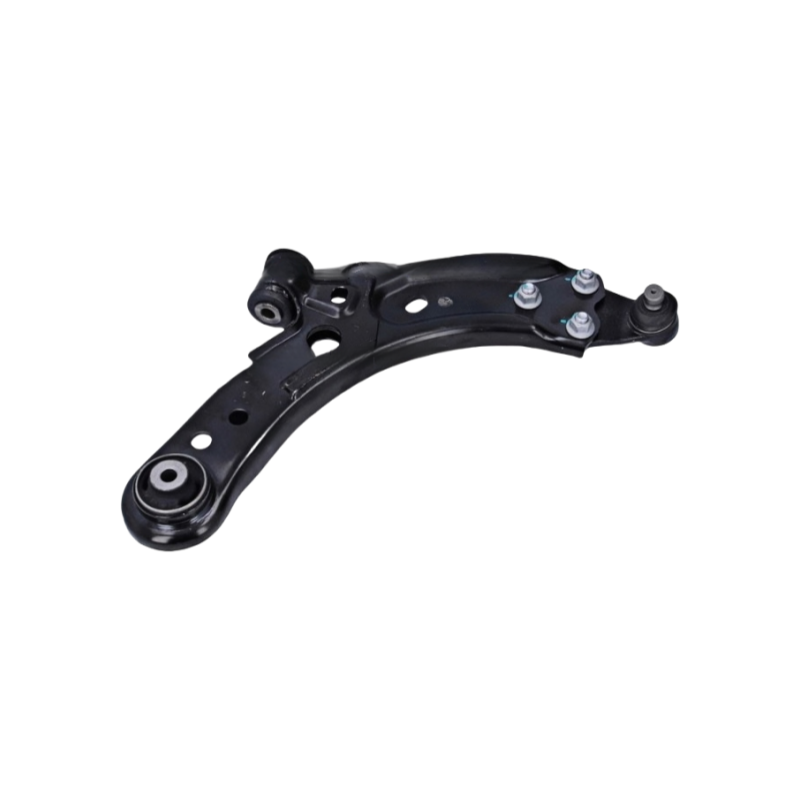

Front Lower Control Arm

The front lower control arm (also called the "front lower wishbone") is a critical load-bearing component in the MG ZS's MacPherson strut front suspension system. Manufactured from high-strength stamped steel or aluminum alloy (depending on trim level), it connects the chassis subframe to the wheel hub assembly via two pivot points: an inner bushing-mounted joint and an outer ball joint.

Design Features:

• L-shaped or A-arm geometry optimizes lateral stiffness while minimizing weight.

• Hydraulic bushings at the inner mounts absorb road vibrations and reduce NVH (noise, vibration, harshness).

• Forged ball joint socket integrates with the knuckle for steering articulation.

• Corrosion-resistant coating protects against salt and moisture.

Function:

1. Wheel Alignment Control: Maintains camber and caster angles during cornering.

2. Load Transfer: Handles vertical forces from springs/dampers and lateral forces during turns.

3. Impact Absorption: Bushings isolate chassis from high-frequency road shocks.

Common Failure Modes:

• Ball joint wear (causing clicking noises when turning).

• Bushing degradation (leading to vague steering).

• Corrosion in harsh climates.

Front Anti-Roll Bar (Stabilizer Bar)

The front suspension stabilizer bar (typically 22–26mm in diameter on the MG ZS) is a torsion spring that reduces body roll by linking the left/right lower control arms. It’s made from spring steel and mounts via rubber isolators to the subframe.

Key Engineering Aspects:

• Hollow vs. Solid Design: Higher trims may use hollow bars for weight savings.

• Drop links: Connect the bar to struts/control arms via spherical joints or rubber bushings.

• Rate Tuning: Thicker bars increase roll stiffness but may compromise ride comfort.

How It Works:
When one wheel moves upward (e.g., during cornering), the bar twists to transfer force to the opposite wheel, keeping the chassis level. This improves grip by maintaining tire contact patches.

Maintenance Notes:

• Linkage bushings wear over time, causing clunks over bumps.

• Excessive stiffness can induce understeer in FWD models like the ZS.

Rear Shock Absorber Dust Cover

The rear damper dust boot is a flexible sleeve (often made of thermoplastic elastomer or reinforced rubber) that shields the shock absorber rod from contaminants like dirt, salt, and moisture.

Purpose:

• Prevents abrasive particles from damaging the rod’s chrome plating.

• Retains lubricants around the piston seal.

• Extends seal life by blocking UV radiation and ozone exposure.

Design Variations:

• Integrated bellows: Some models combine dust cover and bump stop into one unit.

• Ribbed structure: Allows full damper compression/extension without binding.

Failure Symptoms:

• Torn boots lead to rapid seal wear and fluid leaks.

• Visible corrosion on exposed shock rods.

Front Lower Control Arm Ball Joint

This ball-and-socket joint (press-fit or bolted to the control arm) allows multi-axis movement between the control arm and steering knuckle. The MG ZS uses a sealed, grease-packed design with a hardened steel ball and polymer race.

Technical Specifications:

• Load Capacity: Rated for ~1,500–2,000 lbs dynamic loads.

• Sealing: Nitrile rubber boot prevents grease loss and contamination.

• Material: Case-hardened alloy steel (SAE 52100 common).

Performance Criteria:

1. Steering Precision: Minimal play ensures accurate wheel response.

2. Durability: Withstands repeated suspension cycling (e.g., pothole impacts).

Wear Indicators:

• Steering wander or vibration.

• Audible "popping" during low-speed turns.

• Uneven tire wear (due to alignment shifts).

Comparative Analysis

The MG ZS’s suspension shares components with other SAIC models (e.g., Roewe RX3), but tuning prioritizes comfort over sportiness. Notably:

• Control Arms: Simpler stamped steel vs. luxury brands’ aluminum.

• Stabilizer Bar: Smaller diameter than performance SUVs for softer roll rates.

• Ball Joints: Non-serviceable (unit replacement required).

Upgrade Potential:
Aftermarket polyurethane bushings or adjustable arms can sharpen handling, though NVH may increase.
