Body Parts System of MAXUS (LDV) Deliver 9: Key Structural and Exterior Components
The MAXUS (LDV) Deliver 9 is a versatile commercial vehicle designed for durability, safety, and functionality. Its body parts system incorporates robust structural elements and exterior panels that ensure vehicle integrity, passenger protection, and aerodynamic efficiency. Among the critical components are the front longitudinal beam assembly, front doors, engine hood (bonnet), and front fenders (wings). Each plays a distinct role in the vehicle’s overall performance, crashworthiness, and aesthetics.
1. Front Longitudinal Beam Assembly (Front Rail Structure)
Function & Importance:
The front longitudinal beams, also known as front rails or chassis rails, form the backbone of the Deliver 9’s frontal structure. These high-strength steel or aluminum alloy beams are engineered to absorb and dissipate crash energy during frontal collisions, protecting the passenger cabin and critical mechanical components (e.g., engine, transmission).
Design Features:
-
Material: Typically constructed from ultra-high-strength steel (UHSS) or hydroformed aluminum for optimal strength-to-weight ratio.
-
Crush Zones: Designed with predefined crumple zones that deform progressively to mitigate impact forces.
-
Corrosion Resistance: Treated with anti-rust coatings (e.g., galvanization) to withstand harsh environments.
-
Mounting Points: Integrates with the subframe, suspension, and bumper systems to ensure structural rigidity.
Integration in Deliver 9:
In the Deliver 9, the front longitudinal beam assembly is optimized for load distribution, enhancing the vehicle’s towing capacity and frontal crash test ratings (e.g., Euro NCAP standards). Its design also accommodates pedestrian safety regulations by minimizing rigid protrusions.

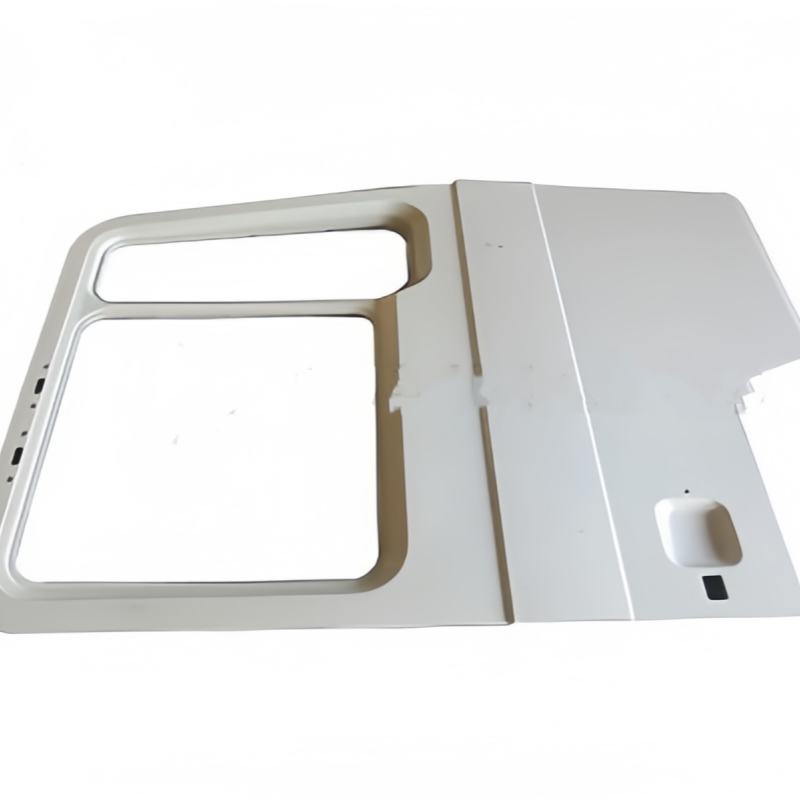

2. Front Doors
Function & Importance:
The front doors provide secure access to the cabin while contributing to side-impact protection, noise insulation, and aerodynamic efficiency.
Design Features:
-
Construction: Comprise an outer panel (stamped steel or aluminum), inner reinforcement beam (high-strength steel), and interior trim.
-
Safety: Reinforced with side-impact beams to resist intrusion during collisions.
-
Ergonomics: Include features such as anti-pinch sensors, adjustable hinges, and integrated mirrors.
-
Sealing: Multi-layer weatherstripping prevents water, dust, and wind noise ingress.
Deliver 9 Specifics:
The Deliver 9’s doors are designed for commercial utility, with options for sliding or hinged configurations (depending on the variant). They may include reinforced locking mechanisms for security and durability in high-use scenarios.
3. Engine Hood (Bonnet)
Function & Importance:
The engine hood shields the powertrain components while contributing to aerodynamics, pedestrian safety, and aesthetics.
Design Features:
-
Material: Often made from lightweight aluminum or steel with corrosion-resistant coatings.
-
Safety Mechanisms: Equipped with pedestrian-friendly designs (e.g., crumple zones or pop-up hinges) to reduce injury in collisions.
-
Ventilation: Includes heat dissipation vents or insulation to manage engine temperatures.
-
Aerodynamics: Contoured to minimize drag and improve fuel efficiency.
Deliver 9 Application:
The Deliver 9’s hood is designed for easy maintenance access, with gas struts or manual prop rods for support. Its shape complements the vehicle’s bold front grille and headlight design.
4. Front Fenders (Wings)
Function & Importance:
Front fenders cover the wheel arches, protecting the chassis from debris and enhancing the vehicle’s aesthetic appeal.
Design Features:
-
Material: Typically steel or composite plastics (e.g., PP/ABS blends) for weight savings.
-
Mudguard Integration: May include liners to reduce road spray and noise.
-
Styling: Sculpted to align with the vehicle’s aerodynamic profile and brand identity.
Deliver 9 Specifics:
The Deliver 9’s fenders are robustly mounted to withstand off-road or urban driving conditions. They may feature flared designs to accommodate larger wheels or utility modifications.
Conclusion
The Deliver 9’s body parts system reflects a balance of durability, safety, and functionality. The front longitudinal beam assembly ensures crash resilience, while doors, hood, and fenders combine practicality with design sophistication. These components underscore MAXUS’s commitment to engineering vehicles tailored for commercial and passenger needs.
