MG5 Engine System Components Technical Overview
1. Connecting Rod Bearing
Definition & Function:
The connecting rod bearing, also known as the rod bearing or connecting rod bushing, is a precision-engineered component that serves as the interface between the connecting rod and the crankshaft. Its primary functions include:
-
Reducing friction between the rotating crankshaft journal and the connecting rod.
-
Distributing load evenly to prevent metal-to-metal contact.
-
Facilitating smooth rotational motion by providing a low-friction surface.
Design & Material:
MG5’s connecting rod bearings are typically constructed from tri-metal or bi-metal layered materials:
-
Top Layer: A soft, anti-friction overlay (e.g., lead-tin or polymer coatings) for embeddability and conformability.
-
Intermediate Layer: A high-strength material like copper-lead or aluminum-silicon alloy for load distribution.
-
Backing Layer: Steel for structural integrity and heat dissipation.
Modern bearings may feature PVD (Physical Vapor Deposition) coatings or polyamide coatings to enhance durability under high-pressure conditions.
Operational Challenges & Solutions:
-
Fatigue Resistance: MG5 bearings are designed to withstand cyclic loads up to 10,000 psi without spalling.
-
Thermal Management: Engineered grooves or micro-channels improve oil flow, reducing thermal stress.
-
Clearance Control: Precision machining ensures optimal oil film thickness (typically 0.025–0.075 mm) to prevent hydrodynamic failure.
Failure Modes:
-
Wear: Caused by contaminated oil or insufficient lubrication.
-
Overheating: Results from oil starvation or excessive bearing clearance.
-
Fatigue Cracking: Due to prolonged high-RPM operation.
Maintenance:
Regular oil changes (per MG5’s service intervals) and use of manufacturer-recommended lubricants (e.g., 5W-30 synthetic oil) are critical.
2. Engine Rocker Arm
Role in Valve Train:
The rocker arm is a pivotal component in overhead valve (OHV) or overhead cam (OHC) engines, translating camshaft motion into vertical valve movement. MG5’s rocker arms are optimized for:
-
Low inertia to enable high-RPM stability.
-
Minimized friction through roller bearings or DLC (Diamond-Like Carbon) coatings.
Types & Materials:
-
Stamped Steel: Cost-effective for mass production.
-
Forged Aluminum: Lightweight, used in performance variants.
-
Roller Rockers: Reduce friction by 15–20% compared to sliding-contact designs.
Key Engineering Features:
-
Pivot Ball Design: Allows self-alignment to compensate for thermal expansion.
-
Hydraulic Lash Adjusters: Integrated in some MG5 models to eliminate manual valve clearance adjustments.
-
Stiffness-to-Weight Ratio: Finite Element Analysis (FEA)-optimized geometry prevents flex under load.
Common Issues:
-
Wear at the Cam Contact Point: Addressed via hardened tips or replaceable pads.
-
Noise: Often due to excessive valve lash or oil starvation.
Innovations:
MG5’s Euro 6-compliant engines may feature finger followers (a type of rocker arm) for reduced valvetrain mass and improved fuel efficiency.

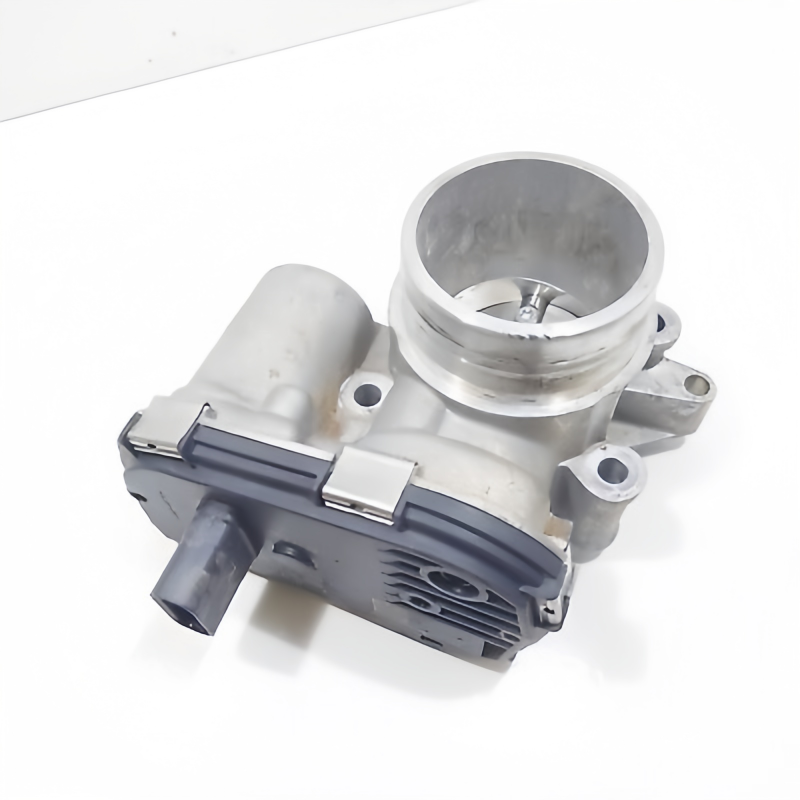

3. Throttle Body
Electronic Throttle Control (ETC) System:
The throttle body regulates air intake into the engine via a throttle plate (butterfly valve). MG5 employs drive-by-wire technology, where the ECU controls the valve position based on pedal input.
Components & Operation:
-
Throttle Plate: Typically made of aluminum or composite materials for rapid response.
-
Throttle Position Sensor (TPS): Monitors valve angle with ±0.5° accuracy.
-
Electric Motor: A stepper or DC motor adjusts plate position within 100–200 ms.
Fail-Safe Mechanisms:
-
Dual-Spring Design: Returns the throttle to a limp-home position if motor fails.
-
Redundant Sensors: Cross-validates TPS data to prevent erratic behavior.
Maintenance Challenges:
-
Carbon Buildup: Requires periodic cleaning (every 60,000 km) to prevent idle instability.
-
Adaptation Resets: Necessary after battery disconnection to recalibrate ECU parameters.
Performance Upgrades:
Aftermarket larger-diameter throttle bodies (e.g., 70 mm vs. stock 60 mm) can improve airflow for turbocharged MG5 variants.
4. Engine Mount
Purpose & Types:
Engine mounts isolate vibrations and support the powertrain. MG5 utilizes a combination of:
-
Hydraulic Mounts: Fluid-filled for high-frequency damping (e.g., idle vibrations).
-
Elastomeric Mounts: Rubber-based for low-frequency load absorption.
-
Active Mounts (Optional): ECU-controlled solenoids adjust stiffness based on driving conditions.
Material Science:
-
Natural Rubber: Balanced damping but degrades under oil exposure.
-
Polyurethane: Used in performance setups for higher stiffness.
-
Hydrogel Layers: In advanced mounts to absorb torsional vibrations.
Dynamic Performance:
-
Static Stiffness: 200–400 N/mm to limit engine displacement during acceleration.
-
Dynamic Rate: Tuned to avoid resonance frequencies (typically 5–20 Hz).
Failure Symptoms:
-
Excessive Movement: Clunking noises during gear shifts.
-
Oil Leaks: In hydraulic mounts, indicating seal failure.
Innovations:
MG5’s hybrid models may employ semi-active mounts with piezoelectric sensors to counteract EV motor vibrations.
Conclusion
The MG5’s Engine System integrates advanced materials, precision engineering, and electronic controls to balance performance, efficiency, and NVH (Noise, Vibration, Harshness) characteristics. Each component—from the hydrodynamic bearings to adaptive engine mounts—reflects SAIC Motor’s focus on modularity and reliability. Future iterations may see wider adoption of smart materials (e.g., magnetorheological fluids in mounts) and AI-driven predictive maintenance for these subsystems.
