For the pure electric model LDV/MAXUS MIFA9, although there is no traditional fuel engine, the core components such as the motor and battery will also generate a lot of heat when working, and an efficient cooling system is required to maintain normal working temperature. The engine cooling fan (adapted for scenarios such as motor cooling), radiator assembly, intercooler assembly, and condenser assembly are the key components of this cooling system, which work together to ensure the stable operation of the vehicle.
Engine Cooling Fan: The "Powerhouse" of Heat Dissipation
The MIFA9's engine cooling fan, while not directly serving the fuel engine, plays a crucial role in dissipating heat from components like the motor and battery. Typically installed behind the radiator and driven by a motor, its high-speed rotation of the blades generates airflow, accelerating air flow over the radiator and other components, thereby removing heat.
The fan's design prioritizes a balance between air volume and energy consumption. Its streamlined blades generate greater air volume at the same speed, enhancing heat dissipation. Furthermore, the fan motor utilizes a high-efficiency, low-consumption permanent magnet synchronous motor, offering rapid response and automatically adjusting speed based on cooling requirements. When component temperatures are low, the fan operates at a low speed or even stops, reducing energy consumption. As temperatures rise, the fan rapidly increases speed to enhance cooling. This intelligent adjustment not only ensures efficient cooling but also reduces vehicle battery consumption, indirectly improving range.
Furthermore, the fan's installation position has been optimized, maintaining a suitable distance from components like the radiator to ensure efficient airflow through the heat dissipating components and avoid airflow turbulence that could affect cooling. The fan casing is made of lightweight and high-temperature resistant material, which can effectively protect the internal structure, while reducing vibration and noise during operation and improving the quietness of the vehicle.
Radiator Assembly: The "Core Platform" of Heat Exchange
The radiator assembly is the core heat exchange component in the MIFA9's cooling system. Its primary function is to transfer heat generated by components like the motor and battery to the air. It consists of a heat sink, upper and lower water chambers, and inlet and outlet pipes, resulting in a compact and efficient overall structure.
The heat sink, the key component of the radiator assembly, consists of a large number of thin-walled metal tubes and fins. Coolant flows through these tubes. As the coolant passes through heat-generating components like the motor and battery, it absorbs heat and rises in temperature before entering the radiator core. The cooling fan then forces cool air to flow rapidly through the fins, exchanging heat with the hot coolant in the tubes. After cooling, the coolant is recirculated back to the heat-generating components, completing the heat dissipation cycle.
The MIFA9's radiator assembly features exceptionally carefully selected materials. The heat sink is primarily constructed of aluminum alloy, a material with excellent thermal conductivity, lightweight, and corrosion resistance, effectively improving heat dissipation efficiency and extending service life. At the same time, the structural design of the core has been optimized to increase the heat dissipation area and the flow path of the coolant, allowing for more complete heat exchange and maintaining good heat dissipation performance even when the vehicle is driving at high speed for a long time or in high temperature environments in summer.

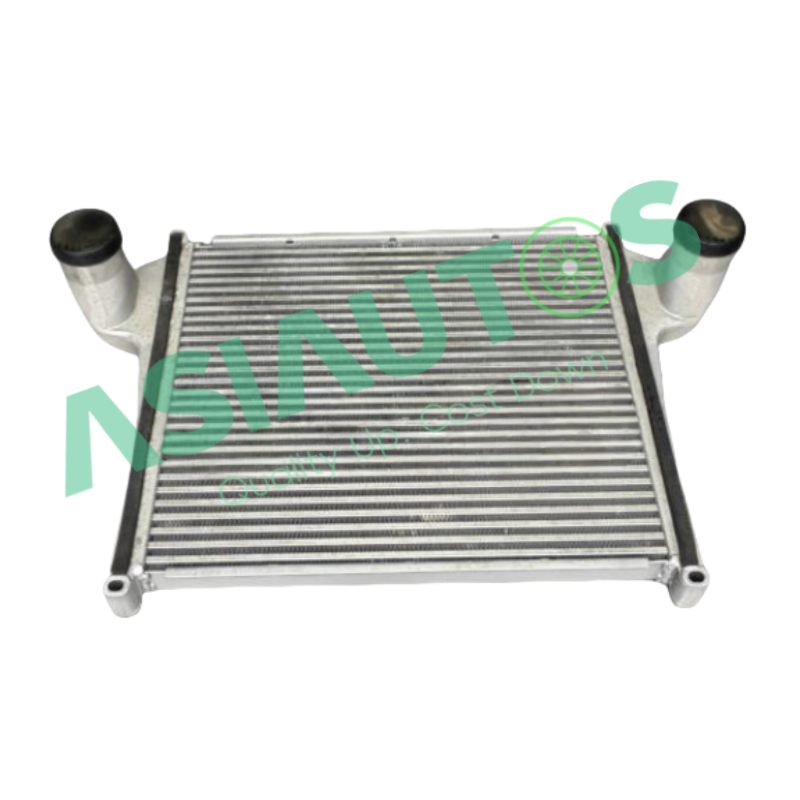

Intercooler Assembly: A Cooling Tool for Optimizing Air Intake Efficiency
For turbocharged vehicles (if compatible with the MIFA9), the intercooler assembly is an essential component. Its primary function is to cool the hot air after turbocharging. Because air undergoes compression and heat surges, its temperature rises significantly, reducing its density. The intercooler reduces this temperature, increasing its density and allowing more air to enter the motor (or related power components), thereby optimizing efficiency.
The MIFA9's intercooler assembly is typically installed in front of the radiator, utilizing oncoming airflow for cooling. Some models also incorporate a cooling fan for enhanced heat dissipation. Its structure is similar to that of a radiator, consisting of a core and inlet and outlet pipes. The core also utilizes a highly efficient heat dissipation structure to ensure that the hot compressed air is adequately cooled as it passes through the intercooler.
The intercooler's cooling performance directly impacts power performance. Inadequate cooling, resulting in excessively high incoming air temperatures, can lead to reduced power and increased energy consumption. Therefore, the design of the MIFA9's intercooler assembly focuses on sealing and heat dissipation efficiency to ensure that the air passing through the turbocharger can be effectively cooled, providing a guarantee for the efficient operation of the power system.
Condenser Assembly: The "Heat Dissipation Center" of the Air Conditioning System
The condenser assembly is a critical component in the MIFA9's air conditioning system. Its primary function is to cool the high-temperature, high-pressure refrigerant vapor discharged from the air conditioning compressor into a liquid state, transferring heat and providing the foundation for interior cooling. It is typically installed on the front of the vehicle, utilizing natural airflow during driving to dissipate heat.
The condenser assembly's structure is similar to a radiator, consisting of a core, manifold, and fins. After entering the condenser, the high-temperature, high-pressure refrigerant vapor exchanges heat with the outside air through the core and fins. After releasing heat, the refrigerant vapor condenses into a liquid state, then flows to the expansion valve, preparing for the next step of evaporation and heat absorption.
The MIFA9's condenser assembly is designed with emphasis on heat dissipation efficiency and corrosion resistance. The core utilizes a highly efficient heat exchange structure, increasing the contact area with the air and improving heat dissipation. Furthermore, the surface is treated with an anti-corrosion treatment to resist erosion by rain, dust, and other factors, extending its service life. When the air conditioning system is operating, the condenser works in conjunction with the cooling fan and radiator. When the vehicle is stationary or driving slowly, and natural airflow is insufficient, the cooling fan automatically activates to provide sufficient cooling air to the condenser, ensuring stable cooling.
Although these four components have distinct functions, they work together to form the MIFA9's heat dissipation and temperature control system. Through efficient heat exchange and intelligent operating logic, they ensure that components such as the motor, battery, and air conditioning operate at optimal temperatures, not only safeguarding the vehicle's power and range but also improving stability and safety. For a pure electric MPV focused on driving comfort, the importance of this "temperature control system" is self-evident.
